LATEST PROJECTS

Project | 01

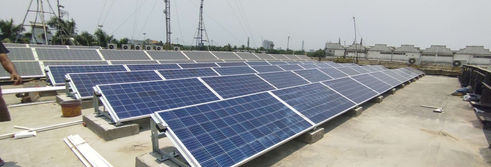

100 kW Ground and Roof Mounted Solar Photovoltaic Power Plant
Detailed Project Report – IPPL

1. Location i) State: West Bengal ii) Locality: Haldia iii) Latitude: 10° 45’ 16.22” N iv) Longitude: 77° 01’ 15.27” E v) Altitude: 296 Meter

2. Area for SPV Plant i) Area: 1500 Sq. Meters ii) Location: Haldia

3. SPV Power Plant i) Capacity:100 kW ii) No. of modules: 306 (330Wp), iii) No. of inverters: 2 (50Kw), iv) No. of String Boxes: 9/inverter

4. Technical details of a SPV Module [WEBSOL] (a) Type: Polycrystalline, Dimensions – 1960 X 990 X 50 mm (b) Electrical Parameters: Max Power Rating:330 Wp, Rated Current:9.32 A, Rated Voltage:36.06 V Short Circuit Current: 8.60A, Open Circuit Voltage: 46.40 V

5. Mounting Arrangement Mounting: Fixed Type, Surface azimuth angle of PV Module : 0°, Tilt angle(slope) of PV Module: 12°

6. Central Inverter No.of units: 2 Rated Capacity: 50 KWp, Input Voltage range: 450 - 820 V (Max.) Output Voltage: 400 V AC Frequency: 50 Hz, Efficiency: 98.3% Make: ABB

5. Grid Connection Details Electrical parameters for interconnection: 415 V, 3Ph,50 Hz

6. Annual Energy Generation:: 150,000 kWh

7. Construction Time: 15 Weeks Learn more.......

Project | 02

New Alipurduar | Turturi khando forest village solar power plant | The rural electrification.

Description: An off-grid solar power plant has been set up in Turturi Khando village where electricity is

being distributed to all families and street lights.

Duration: April 2018, 30 days.

Role: project materials purchaser, and solar Technician

.
Team Size: 8

Project | 03

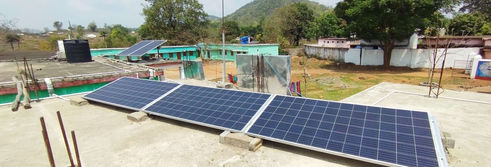

• Banskopa forest village solar power plant then rural electrification.

Description: Offgrid solar power plants have been installed on the rooftop of a school in Banskpa
village where electricity is being distributed to all houses and street lights.

Duration: March 2018, 25 days.

Role: Solar Technician

Team Size: 4

Project | 04

• SELCO Sambalpur Project (Odisha)

Description: Total 251 Kwp 107 Number of sites I & C.
System model –
1. Option 1A - 1kwp, 120Ah,48VDC Hybrid system. – 53 nos.
2. Option 1B - 1kwp, 150Ah,48VDC Of grid system with load wiring. – 16 nos.
3. Option 1C - 1kwp, 150Ah,48VDC Of grid system. – 13 nos.
4. Option 2A - 5kwp, 300Ah,96VDC Hybrid system. – 16 nos.
5. Option 3A - 10kwp, 200Ah,240VDC Hybrid system. – 6 nos.
6. Option 4A - 10kwp, 200Ah,240VDC Hybrid system. – 1 no.
7. Option 4B - 3kwp, 200Ah,48VDC Hybrid system. – 1 no.
8. Option 4C - 10kwp, 300Ah,240VDC,12.5kva,3Ph Hybrid system. – 1 no.
9. Option 4D,4E - 2kwp, 200Ah,48VDC Hybrid system. – 2 nos.
10. Option 4F,4G - 1kwp, 200Ah,48VDC Hybrid system. – 2 nos.

Duration: March 2022, 6 Months.

Role: Warehouse Supervisor, Service & Project Co-Ordinator.

Team Size: Contractor Based.

Project | 05

• SELCO Kalahandi Project (Odisha)

Description: Total 341 Kwp 153 Number of sites I & C.
System model –
1. Option 1 - 1kwp, 120Ah,48VDC Hybrid system. – 50 nos.
2. Option 2 - 1kwp, 150Ah,48VDC Of grid system. – 43 nos.
3. Option 3 - 1kwp, 150Ah,48VDC Of grid system with load wiring. – 19 nos.
4. Option 4 - 5kwp, 300Ah,96VDC 1Ph Hybrid system. – 28 nos.
5. Option 5 - 10kwp, 200Ah,240VDC, 15kva,3Ph, Hybrid system. – 4 nos.

6. Option 7 – 6.7kwp, 180Ah,120VDC Hybrid system. – 2 nos.
7. Option 8 - 6kwp, 200Ah,120VDC Hybrid system. – 1 no.
8. Option 11A,11B – 6.7kwp,200Ah,240VDC,12.5kva,3Ph, Hybrid system – 2 nos.
9. Option 12A - 5kwp, 150Ah,96VDC Hybrid system. – 1 no.
11. Option 12B – 3kwp, 200Ah,48VDC Hybrid system. – 1 no.
12. Option 14A – 3.3kwp, 200Ah,96VDC Hybrid system. – 1 no.
10. Option 14B - 5kwp, 300Ah,96VDC Hybrid system. – 1 no.

Duration: August 2022, 6 Months.

Role: Service & Project Co-Ordinator.
